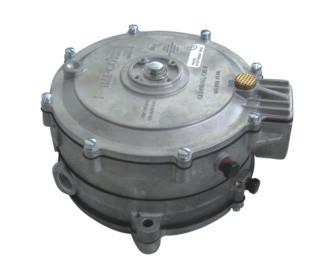

Engine Heated Two Stage Model E PE IMPCO Regulator

  • 1
  • 2

Brand Name : IMPCO

Model Number : MODEL E&PE

Certification : UL

Place of Origin : USA

MOQ : 24

Payment Terms : T/T

Supply Ability : 1200pcs per 8weeks

Delivery Time : 8 weeks

Packaging Details : carton

Price : Depending on quantity

Material : Aluminum

Fuel Type : LPG Liquid/Vapor and Natural Gas

Operating Temperature Range : -40°F to +250°F (-40°C to +121°C)

HP/KW Rating : 325 hp (242.3 kW) LPG; 200 hp (150 kW) where lower water flow-rate is a factor.

Applications. : Stationary, mobile, industrial, and automotive

Inlet Pressure : Maximum 312 psi (21.51 Bar); Minimum 30 psi (207 kPa)

Mounting Position : Vertical (outlet down) recommended

Diaphragm Material : Hydrin

Contact Now

IMPCO Model E & PE , Engine Heated Two-Stage Regulator, Two Negative/ One Positive Outlet Pressure Option
Model E & PE
DESCRIPTION
The model E & PE are engine heated two-stage regulator/vaporizers. The model E provides a choice of two negative outlet pressures. A “B” blue secondary spring provides a -1.5” w.c. (-0.37 kPa) output and an optional “O” orange secondary spring provides -0.5” w.c. (-0.12 kPa) output. A manual primer is standard on the Model E.
The model PE provides a positive outlet pressure for applications that require a positive feed system and/or the ability to vaporize liquid fuel. A heated regulator/vaporizer is not required of CNG (it is recommended that the Model PEV be used for these systems). Additional mixture stability is possible with the PE as a result of a more consistent fuel temperature gained through the use of the heated labyrinth. The PE is supplied as a fixed outlet pressure regulator but can be converted to an adjustable unit with the AC1-74 retrofit kit.
SPECIFICATIONS
Fuel Type LPG Liquid/Vapor and Natural Gas
Inlet Pressure 　
Maximum 312 psi (21.51 Bar)
Minimum 30 psi (207 kPa)
Outlet Pressure (Nominal)
EB -1.5” w.c. (-0.37 kPa)
EO -5.0” w.c. (-0.12 kPa)
PE +5.0” w.c. (1.2 kPa)
HP/kW Rating 325 hp (242.3 kW) LPG
200 hp (150 kW) where lower water flow-rate is a factor.
Operating Temperature Range -40°F to +250°F (-40°C to +121°C)
Fuel Filtration Required 40 micron
Heating Chamber Source Required for liquid LPG
Mounting Position Vertical (outlet down) recommended. Horizontal position can be used when fuel contamination can be controlled with HD-5 specified LPG fuel
Diaphragm Material Hydrin, Silicone, and Fluorosilicone (optional)
Applications Stationary, mobile, industrial, and automotive
Certification UL (AU2317 & AU1502), Inquire for specific ECE approval
Engine Heated Two Stage Model E PE IMPCO RegulatorEngine Heated Two Stage Model E PE IMPCO RegulatorEngine Heated Two Stage Model E PE IMPCO Regulator
